DYNATRAC : ProRock44/60 Hybrid Assy - Jeep TJ. [DYT-TJ4460HYD-]

Axle Assy, Axle Housing

DYNATRAC : ProRock44/60 Hybrid Assy - Jeep TJ. [DYT-TJ4460HYD-]

製品：DYNATRAC : ProRock44/60 Hybrid Assy - Jeep TJ. [DYT-TJ4460HYD-]

ブランド, 品番：DYT-TJ4460HYD-

適合：Jeep TJ Wrangler 97-up, and Others

販売価格：Open（税込）

個

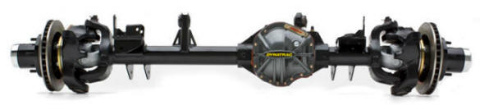

From- 97 & Later Jeep TJ Pro 60™ Hi-pinion axle assembly

To- 97 & Later Jeep TJ Pro 44/60 Hi-pinion axle assembly


JK ProRock™44/60 hybrid with optional Stub-Hub Kit  (TJ shown- JK very similar)


For comparison- Front JK ProRock™60

240_TJ4service_ERock120805_01.jpg240_JK-frt-PR4460HYD-axle_large1.jpgのサムネール画像



Important questions you should ask any axle supplier when making an axle investment for your TJ or JK:

  • Is your confidence in your axle's quality and performance assured because it is 100% manufactured and assembled in the United States? (Don't get fooled by others with Chinese parts)
  • Has your axle been designed from the ground up exclusively with components that are designed to work together? (Some use components from other axles that are forced to work together)
  • For the life of your vehicle will you be able to service your axles with off-the-shelf components like brakes, bearings, races, and seals?
  • Can you be assured a "no-fault" warranty if you properly service and maintain your axles?
  • Will your axles be made from 100% new parts and not with some parts that are recycled, refurbished or salvaged?
  • With a looming rock approaching your investment, does your axle have well over 1-inch of additional ground clearance you need to keep from getting hung-up, stuck, or damaged?



Dynatrac フロント プロロック44/60 ハイブリッド アクスル キット TJ.

► to DYNATRAC : ProRock44/60 Hybrid Assy - Jeep JK. [DYT-JK4460HYD-]用はこちらへ ►



Standar

  • Complete Custom Dynatrac ProRock 44/60® front axle assembly with 12 month limited warranty
  • Custom machined Dynatrac ProRock 44® Hi-pinion housing
  • 35-spline 1.5”, induction-hardened, alloy steel axle shafts
  • Heavy duty 3” x ½” wall DOM housing tube assemblies
  • Choice of ring and pinion ratio (3.73:1-5.38:1)
  • ARB locking differential
  • Best pinion angle for 4-6” lifts
  • Billet steel housing ends
  • Large tapered roller axle bearings
  • Heavy-duty steel retainers
  • 1310 U-bolt style yoke (U-bolts included, Other yokes available call for pricing)
  • Dynatrac Hi-strength TJ Coil Spring Bracket Package
  • Width 63.5” (stock 60.5”)
  • Assembly is finely detailed with a hi-gloss black finish

Optional Equipments :

  • ARB High Output Onboard Air Compressor kit
  • 35 spline, 1½” diameter outer axle shaft assemblies w/Warn Premium 35 spline locking hub upgrade
  • Competition 35 Spline Axle Shaft Upgrade (Includes 4340 Chromoly Inners & Outers + 2 CTM joints)
  • RCV Performance 35 Spline Dana 60 Inner/Outer CV Axle Shaft Assemblies
  • Wheel mounted Anti-Lock brake sensors (ABS) - (Core charge required on some models)
  • 5x5.5” Dual Piston 13.25” Vented Rotor “Big Disc” Brake Upgrade - *Min. 17” wheel required
  • 8x6.5” Dual Piston, 14.50” Vented Rotor “Big Disc” Brake Upgrade - *Min. 17” wheel required
  • Wilwood 6 Piston 14” Rotor Disc Brake Pkg. (5x5.5” BC only) - *Min. 17” wheel required
  • 1350 Yoke (U-bolt style)
  • Braided stainless steel brake hose kit (To be sent after axle is installed due to length requirement)
  • Reid Racing King Pin End-Forging & Knuckle Substitute Assy. – 5, 6 and 8 lug
  • Dynatrac Heavy Duty 30 or 35 spline full-time 4WD drive gears
  • Dynatrac Dynaloc Heavy Duty Manual Locking Hubs - Upgrade
  • Dynatrac Stub-Hub Conversion Kit Upgrade
  • Dynatrac Extreme-Duty Spindle Upgrade (Pair)
  • NEW! Dynatrac Heavy Duty Ball Joint Upgrade (Uppers & Lowers)
  • Dynatrac TJ High Clearance Cross-Over Steering Assembly (For Jeep™ TJ includes track bar)
  • Powder coat finish (Color TBD by customer)
  • Axle installation (Estimated Labor Only)





240_JK-frt-PR4460HYD-axle_small1.jpg All JK front axles feature special JK mounting brackets and ribbed, nodular iron pumpkin housings for strength.
240_JK-frt-PR4460HYD-axle_large2.jpg Only Dynatrac’s JK axle includes specially designed ABS and Stability Control sensor mounts.
240_Dynaloc_large3[1].jpg DynaLoc™ locking hubs add increased strength and ground clearance (No Charge)
240_JK-frt-PR4460HYD-axle_small4.jpg  JK front axle shown with optional Stub-Hub hub conversion and DynaLoc™ locking hubs.
240_Stub-Hub Kit_large5.jpg  Stub-Hub Kit add 4.75" of clearance. (Optional)
240_TJ4DYTProRock44DiffCover001-c.jpg  ProRock Nodular Iron Diff cover adds increased housing rigidity and protection





  Part Number DYT-TJ4460HYD-

Vehicle
 Jeep TJ Wrangler 97-up, and Others.
