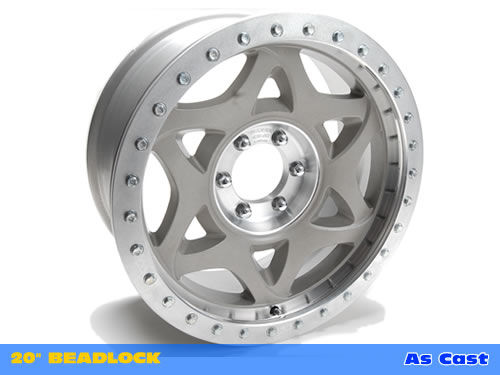

オフロード走行時に低圧での使用が可能になる、本物志向のビードロックホイールです。 日本へは、TJ4SERVICEがお届けします。 WALKER EVANS RACING BEADLOCK WHEELS OFFROAD ONLY. 数多くのROCK CRAWL CHANPION MACHINE に採用されている、最強のBeadLock Wheelです。

WALKER EVANS RACING BEADLOCK WHEELS   Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.       Size Bolt Circle Backspace Center Hole Lug Type Part Number     15x8 5x4 1/2 3 3/4" 3 1/4" Tapered 31-586537     15x8 5x4 1/2 4" 3 1/4" Tapered 31-586540     15x8 5x4 1/2 4 1/4" 3 1/4" Tapered 31-586542     15x8 5x4 1/2 4 1/2" 3 1/4" Tapered 31-586545     15x8 5x4 1/2 4 3/4" 3 1/4" Tapered 31-586547     15x8 5x4 1/2 5" 3 1/4" Tapered 31-586550     15x8 5x4 3/4 3 3/4" 3 1/4" Tapered 31-586137     15x8 5x4 3/4 4" 3 1/4" Tapered 31-586140     15x8 5x4 3/4 4 1/4" 3 1/4" Tapered 31-586142     15x8 5x4 3/4 4 1/2" 3 1/4" Tapered 31-586145     15x8 5x4 3/4 4 3/4" 3 1/4" Tapered 31-586147     15x8 5x4 3/4 5" 3 1/4" Tapered 31-586150     15x8 5x5 3 3/4" 3 1/4" Tapered 31-587337     15x8 5x5 4" 3 1/4" Tapered 31-587340     15x8 5x5 4 1/4" 3 1/4" Tapered 31-587342     15x8 5x5 4 1/2" 4 1/4" Tapered 31-587345     15x8 5x5 4 3/4" 4 1/4" Tapered 31-587347     15x8 5x5 5" 4 1/4" Tapered 31-587350     15x8 5x5 1/2 3 3/4" 4 1/4" Tapered 31-587537     15x8 5x5 1/2 4" 4 1/4" Tapered 31-587540     15x8 5x5 1/2 4 1/4" 4 1/4" Tapered 31-587542     15x8 5x5 1/2 4 1/2" 4 1/4" Tapered 31-587545     15x8 5x5 1/2 4 3/4" 4 1/4" Tapered 31-587547     15x8 5x5 1/2 5" 4 1/4" Tapered 31-587550                   New World Series Ring       Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 5x4 1/2 3 3/4" 3 1/4" Tapered 31-7856537     17x8 1/2 5x4 1/2 4" 3 1/4" Tapered 31-7856540     17x8 1/2 5x4 1/2 4 1/4" 3 1/4" Tapered 31-7856542     17x8 1/2 5x4 1/2 4 1/2" 3 1/4" Tapered 31-7856545     17x8 1/2 5x4 1/2 4 3/4" 3 1/4" Tapered 31-7856547     17x8 1/2 5x4 1/2 5" 3 1/4" Tapered 31-7856550     17x8 1/2 5x4 3/4 3 3/4" 3 1/4" Tapered 31-7856137     17x8 1/2 5x4 3/4 4" 3 1/4" Tapered 31-7856140     17x8 1/2 5x4 3/4 4 1/4" 3 1/4" Tapered 31-7856142     17x8 1/2 5x4 3/4 4 1/2" 3 1/4" Tapered 31-7856145     17x8 1/2 5x4 3/4 4 3/4" 3 1/4" Tapered 31-7856147     17x8 1/2 5x4 3/4 5" 3 1/4" Tapered 31-7856150     17x8 1/2 5x5 3 3/4" 3 1/4" Tapered 31-7857337     17x8 1/2 5x5 4" 3 1/4" Tapered 31-7857340     17x8 1/2 5x5 4 1/4" 3 1/4" Tapered 31-7857342     17x8 1/2 5x5 4 1/2" 3 1/4" Tapered 31-7857345     17x8 1/2 5x5 4 3/4" 3 1/4" Tapered 31-7857347     17x8 1/2 5x5 5" 3 1/4" Tapered 31-7857350     17x8 1/2 5x5 1/2 3 3/4" 4 1/4" Tapered 31-7857537     17x8 1/2 5x5 1/2 4" 4 1/4" Tapered 31-7857540     17x8 1/2 5x5 1/2 4 1/4" 4 1/4" Tapered 31-7857542     17x8 1/2 5x5 1/2 4 1/2" 4 1/4" Tapered 31-7857545     17x8 1/2 5x5 1/2 4 3/4" 4 1/4" Tapered 31-7857547     17x8 1/2 5x5 1/2 5" 4 1/4" Tapered 31-7857550                   Flange type / 90 deg. lug nut Bolt code 76   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 5x5 1/2 3 3/4" 4 1/4" Flange 31-7857637     17x8 1/2 5x5 1/2 4" 4 1/4" Flange 31-7857640     17x8 1/2 5x5 1/2 4 1/4" 4 1/4" Flange 31-7857642     17x8 1/2 5x5 1/2 4 1/2" 4 1/4" Flange 31-7857645                     Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 5x5 1/2 4 3/4" 4 1/4" Flange 31-7857647     17x8 1/2 5x135mm 5" 4 1/4" Flange 31-7857650     17x8 1/2 5x135mm 3 3/4" 4 1/4" Tapered 31-7853537     17x8 1/2 5x135mm 4" 4 1/4" Tapered 31-7853540     17x8 1/2 5x135mm 4 1/4" 4 1/4" Tapered 31-7853542     17x8 1/2 5x135mm 4 1/2" 4 1/4" Tapered 31-7853545     17x8 1/2 6x135mm 4 3/4" 4 1/4" Tapered 31-7853547     17x8 1/2 6x135mm 5" 4 1/4" Tapered 31-7853550     17x8 1/2 6x135mm 3 3/4" 4 1/4" Tapered 31-7853637     17x8 1/2 6x135mm 4" 4 1/4" Tapered 31-7853640     17x8 1/2 6x135mm 4 1/4" 4 1/4" Tapered 31-7853642     17x8 1/2 6x135mm 4 1/2" 4 1/4" Tapered 31-7853645     17x8 1/2 6x135mm 4 3/4" 4 1/4" Tapered 31-7853647     17x8 1/2 6x135mm 5" 4 1/4" Tapered 31-7853650     17x8 1/2 6x5 1/2 3 3/4" 4 1/4" Tapered 31-7853837     17x8 1/2 6x5 1/2 4" 4 1/4" Tapered 31-7853840     17x8 1/2 6x5 1/2 4 1/4" 4 1/4" Tapered 31-7853842     17x8 1/2 6x5 1/2 4 1/2" 4 1/4" Tapered 31-7853845     17x8 1/2 6x5 1/2 4 3/4" 4 1/4" Tapered 31-7853847     17x8 1/2 6x5 1/2 5" 4 1/4" Tapered 31-7853850                   Flange type / 90 deg. lug nut Bolt code 66 Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 6x6 1/2 3 3/4" 4 1/4" Flange 31-7856637     17x8 1/2 6x6 1/2 4" 4 1/4" Flange 31-7856640     17x8 1/2 6x6 1/2 4 1/4" 4 1/4" Flange 31-7856642     17x8 1/2 6x6 1/2 4 1/2" 4 1/4" Flange 31-7856645     17x8 1/2 6x6 1/2 4 3/4" 4 1/4" Flange 31-7856647     17x8 1/2 8x6 1/2 5" 4 1/4" Flange 31-7856650                                   Pro Am Hubs, Flange typ. /90 deg. Lug nut 67 Bolt code Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 6x6 1/2 3 3/4" 4 3/4" Flange Pro-Am 31-7856737     17x8 1/2 6x6 1/2 4" 4 3/4" Flange Pro-Am 31-7856740     17x8 1/2 6x6 1/2 4 1/4" 4 3/4" Flange Pro-Am 31-7856742     17x8 1/2 6x6 1/2 4 1/2" 4 3/4" Flange Pro-Am 31-7856745     17x8 1/2 6x6 1/2 4 3/4" 4 3/4" Flange Pro-Am 31-7856747     17x8 1/2 6x6 1/2 5" 4 3/4" Flange Pro-Am 31-7856750                                   Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 8x6 1/2 3 3/4" 5 1/8" Tapered 31-7858337     17x8 1/2 8x6 1/2 4" 5 1/8" Tapered 31-7858340     17x8 1/2 8x6 1/2 4 1/4" 5 1/8" Tapered 31-7858342     17x8 1/2 8x6 1/2 4 1/2" 5 1/8" Tapered 31-7858345     17x8 1/2 8x6 1/2 4 3/4" 5 1/8" Tapered 31-7858347     17x8 1/2 8x6 1/2 5" 5 1/8" Tapered 31-7858350     17x8 1/2 8x170mm 3 3/4" 5 1/8" Tapered 31-7857037     17x8 1/2 8x170mm 4" 5 1/8" Tapered 31-7857040     17x8 1/2 8x170mm 4 1/4" 5 1/8" Tapered 31-7857042     17x8 1/2 8x170mm 4 1/2" 5 1/8" Tapered 31-7857045     17x8 1/2 8x170mm 4 3/4" 5 1/8" Tapered 31-7857047     17x8 1/2 8x170mm 5" 5 1/8" Tapered 31-7857050                                   Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.     Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 5x205mm 4" 6.330" Ball 31-7852540     17x8 1/2 5x205mm 4 1/4" 6.330" Ball 31-7852542     17x8 1/2 5x205mm 4 1/2" 6.330" Ball 31-7852545     17x8 1/2 5x205mm 4 3/4" 6.330" Ball 31-7852547     17x8 1/2 5x205mm 5" 6.330" Ball 31-7852550                         Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 5x4 1/2 5" 3 1/4" Tapered 71-7856550     17x8 1/2 5x4 1/2 5 1/4" 3 1/4" Tapered 71-7856552     17x8 1/2 5x4 1/2 5 1/2" 3 1/4" Tapered 71-7856555     17x8 1/2 5x4 1/2 5 3/4" 3 1/4" Tapered 71-7856557     17x8 1/2 5x4 1/2 6" 3 1/4" Tapered 71-7856560     17x8 1/2 5x4 3/4 5" 3 1/4" Tapered 71-7856150     17x8 1/2 5x4 3/4 5 1/4" 3 1/4" Tapered 71-7856152     17x8 1/2 5x4 3/4 5 1/2" 3 1/4" Tapered 71-7856155     17x8 1/2 5x4 3/4 5 3/4" 3 1/4" Tapered 71-7856157     17x8 1/2 5x4 3/4 6" 3 1/4" Tapered 71-7856160     17x8 1/2 5x5 5" 3 1/4" Tapered 71-7857350     17x8 1/2 5x5 5 1/4" 3 1/4" Tapered 71-7857352     17x8 1/2 5x5 5 1/2" 3 1/4" Tapered 71-7857355     17x8 1/2 5x5 5 3/4" 3 1/4" Tapered 71-7857357     17x8 1/2 5x5 6" 3 1/4" Tapered 71-7857360     17x8 1/2 5x5 1/2 5" 4 1/4" Tapered 71-7857550     17x8 1/2 5x5 1/2 5 1/4" 4 1/4" Tapered 71-7857552     17x8 1/2 5x5 1/2 5 1/2" 4 1/4" Tapered 71-7857555     17x8 1/2 5x5 1/2 5 3/4" 4 1/4" Tapered 71-7857557     17x8 1/2 5x5 1/2 6" 4 1/4" Tapered 71-7857560   Flange type / 90 deg. lug nut Bolt code 76   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 5x5 1/2 5" 4 1/4" Tapered 71-7857650     17x8 1/2 5x5 1/2 5 1/4" 4 1/4" Tapered 71-7857652     17x8 1/2 5x5 1/2 5 1/2" 4 1/4" Tapered 71-7857655     17x8 1/2 5x5 1/2 5 3/4" 4 1/4" Tapered 71-7857657     17x8 1/2 5x5 1/2 6" 4 1/4" Tapered 71-7857660     17x8 1/2 5x135mm 5" 4 1/4" Tapered 71-7853550     17x8 1/2 5x135mm 5 1/4" 4 1/4" Tapered 71-7853552     17x8 1/2 5x135mm 5 1/2" 4 1/4" Tapered 71-7853555     17x8 1/2 5x135mm 5 3/4" 4 1/4" Tapered 71-7853557     17x8 1/2 5x135mm 6" 4 1/4" Tapered 71-7853560     17x8 1/2 6x135mm 5" 4 1/4" Tapered 71-7853650     17x8 1/2 6x135mm 5 1/4" 4 1/4" Tapered 71-7853652     17x8 1/2 6x135mm 5 1/2" 4 1/4" Tapered 71-7853655     17x8 1/2 6x135mm 5 3/4" 4 1/4" Tapered 71-7853657     17x8 1/2 6x135mm 6" 4 1/4" Tapered 71-7853660     17x8 1/2 6x5 1/2 5" 4 1/4" Tapered 71-7853850     17x8 1/2 6x5 1/2 5 1/4" 4 1/4" Tapered 71-7853852     17x8 1/2 6x5 1/2 5 1/2" 4 1/4" Tapered 71-7853855     17x8 1/2 6x5 1/2 5 3/4" 4 1/4" Tapered 71-7853857     17x8 1/2 6x5 1/2 6" 4 1/4" Tapered 71-7853860   Flange type / 90 deg. lug nut Bolt code 66 Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 6x6 1/2 5" 4 1/4" Flange Pro-Am 71-7856650     17x8 1/2 6x6 1/2 5 1/4" 4 1/4" Flange Pro-Am 71-7856652     17x8 1/2 6x6 1/2 5 1/2" 4 1/4" Flange Pro-Am 71-7856655     17x8 1/2 6x6 1/2 5 3/4" 4 1/4" Flange Pro-Am 71-7856657     17x8 1/2 6x6 1/2 6" 4 1/4" Flange Pro-Am 71-7856660                                   Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     17x8 1/2 8x6 1/2 5" 5 1/8" Tapered 71-7858350     17x8 1/2 8x6 1/2 5 1/4" 5 1/8" Tapered 71-7858352     17x8 1/2 8x6 1/2 5 1/2" 5 1/8" Tapered 71-7858355     17x8 1/2 8x6 1/2 5 3/4" 5 1/8" Tapered 71-7858357     17x8 1/2 8x6 1/2 6" 5 1/8" Tapered 71-7858360     17x8 1/2 8x170mm 5" 5 1/8" Tapered 71-7857050     17x8 1/2 8x170mm 5 1/4" 5 1/8" Tapered 71-7857052     17x8 1/2 8x170mm 5 1/2" 5 1/8" Tapered 71-7857055     17x8 1/2 8x170mm 5 3/4" 5 1/8" Tapered 71-7857057     17x8 1/2 8x170mm 6" 5 1/8" Tapered 71-7857060                         Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     20x8 1/2 5x4 1/2 4 3/4" 3 1/4" Tapered 71-2856547     20x8 1/2 5x4 1/2 5" 3 1/4" Tapered 71-2856550     20x8 1/2 5x4 1/2 5 1/4" 3 1/4" Tapered 71-2856552     20x8 1/2 5x4 1/2 5 1/2" 3 1/4" Tapered 71-2856555     20x8 1/2 5x4 1/2 5 3/4" 3 1/4" Tapered 71-2856557     20x8 1/2 5x4 1/2 6" 3 1/4" Tapered 71-2856560     20x8 1/2 5x4 3/4 4 3/4" 3 1/4" Tapered 71-2856147     20x8 1/2 5x4 3/4 5" 3 1/4" Tapered 71-2856150     20x8 1/2 5x4 3/4 5 1/4" 3 1/4" Tapered 71-2856152     20x8 1/2 5x4 3/4 5 1/2" 3 1/4" Tapered 71-2856155     20x8 1/2 5x4 3/4 5 3/4" 3 1/4" Tapered 71-2856157     20x8 1/2 5x4 3/4 6" 3 1/4" Tapered 71-2856160     20x8 1/2 5x5 4 3/4" 3 1/4" Tapered 71-2857347     20x8 1/2 5x5 5" 3 1/4" Tapered 71-2857350     20x8 1/2 5x5 5 1/4" 3 1/4" Tapered 71-2857352     20x8 1/2 5x5 5 1/2" 3 1/4" Tapered 71-2857355     20x8 1/2 5x5 5 3/4" 3 1/4" Tapered 71-2857357     20x8 1/2 5x5 6" 3 1/4" Tapered 71-2857360     20x8 1/2 5x5 1/2 4 3/4" 4 1/4" Tapered 71-2857547     20x8 1/2 5x5 1/2 5" 4 1/4" Tapered 71-2857550     20x8 1/2 5x5 1/2 5 1/4" 4 1/4" Tapered 71-2857552     20x8 1/2 5x5 1/2 5 1/2" 4 1/4" Tapered 71-2857555     20x8 1/2 5x5 1/2 5 3/4" 4 1/4" Tapered 71-2857557     20x8 1/2 5x5 1/2 6" 4 1/4" Tapered 71-2857560   Flange type / 90 deg. lug nut Bolt code 76 (Race Lug) Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     20x8 1/2 5x5 1/2 4 3/4" 4 1/4" Flange 71-2857647     20x8 1/2 5x5 1/2 5" 4 1/4" Flange 71-2857650     20x8 1/2 5x5 1/2 5 1/4" 4 1/4" Flange 71-2857652     20x8 1/2 5x5 1/2 5 1/2" 4 1/4" Flange 71-2857655     20x8 1/2 5x5 1/2 5 3/4" 4 1/4" Flange 71-2857657     20x8 1/2 5x5 1/2 6" 4 1/4" Flange 71-2857660     20x8 1/2 5x135mm 4 3/4" 3.49" Tapered 71-2853547     20x8 1/2 5x135mm 5" 3.49" Tapered 71-2853550     20x8 1/2 5x135mm 5 1/4" 3.49" Tapered 71-2853552     20x8 1/2 5x135mm 5 1/2" 3.49" Tapered 71-2853555     20x8 1/2 5x135mm 5 3/4" 3.49" Tapered 71-2853557     20x8 1/2 5x135mm 6" 3.49" Tapered 71-2853560     20x8 1/2 5x150mm 4 3/4" 4 1/2" Tapered 71-2855547     20x8 1/2 5x150mm 5" 4 1/2" Tapered 71-2855550     20x8 1/2 5x150mm 5 1/4" 4 1/2" Tapered 71-2855552     20x8 1/2 5x150mm 5 1/2" 4 1/2" Tapered 71-2855555     20x8 1/2 5x150mm 5 5/8" 4 1/2" Tapered 71-2855556                   Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     20x8 1/2 6x135mm 4 3/4" 3.49" Tapered 71-2853647     20x8 1/2 6x135mm 5" 3.49" Tapered 71-2853650     20x8 1/2 6x135mm 5 1/4" 3.49" Tapered 71-2853652     20x8 1/2 6x135mm 5 1/2" 3.49" Tapered 71-2853655     20x8 1/2 6x5 1/2 4 3/4" 4 1/4" Tapered 71-2853847     20x8 1/2 6x5 1/2 5" 4 1/4" Tapered 71-2853850     20x8 1/2 6x5 1/2 5 1/4" 4 1/4" Tapered 71-2853852     20x8 1/2 6x5 1/2 5 1/2" 4 1/4" Tapered 71-2853855     20x8 1/2 6x5 1/2 5 3/4" 4 1/4" Tapered 71-2853857     20x8 1/2 6x5 1/2 6" 4 1/4" Tapered 71-2853860                   Flange type / 90 deg. lug nut Bolt code 66 (Race Lug) Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     20x8 1/2 6x6 1/2 4 3/4" 4 1/4" Flange 71-2856647     20x8 1/2 6x6 1/2 5" 4 1/4" Flange 71-2856650     20x8 1/2 6x6 1/2 5 1/4" 4 1/4" Flange 71-2856652     20x8 1/2 6x6 1/2 5 1/2" 4 1/4" Flange 71-2856655     20x8 1/2 6x6 1/2 5 3/4" 4 1/4" Flange 71-2856657     20x8 1/2 6x6 1/2 6" 4 1/4" Flange 71-2856660                   Flange type / 90 deg. lug nut Bolt code 67 (Race Lug) Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     20x8 1/2 6x6 1/2 4 3/4" 4 3/4" Flange 71-2856747     20x8 1/2 6x6 1/2 5" 4 3/4" Flange 71-2856750     20x8 1/2 6x6 1/2 5 1/4" 4 3/4" Flange 71-2856752     20x8 1/2 6x6 1/2 5 1/2" 4 3/4" Flange 71-2856755     20x8 1/2 6x6 1/2 5 3/4" 4 3/4" Flange 71-2856757     20x8 1/2 6x6 1/2 6" 4 3/4" Flange 71-2856760                   Part numbers reflect non-polished wheels. Please add "P" to end of part number for polish.   Size Bolt Circle Backspace Center Hole Lug Type Part Number     20x8 1/2 8x6 1/2 4 3/4" 5 1/8" Tapered 71-2858347     20x8 1/2 8x6 1/2 5" 5 1/8" Tapered 71-2858350     20x8 1/2 8x6 1/2 5 1/4" 5 1/8" Tapered 71-2858352     20x8 1/2 8x6 1/2 5 1/2" 5 1/8" Tapered 71-2858355     20x8 1/2 8x6 1/2 5 3/4" 5 1/8" Tapered 71-2858357     20x8 1/2 8x6 1/2 6" 5 1/8" Tapered 71-2858360     20x8 1/2 8x170mm 4 3/4" 5 1/8" Tapered 71-2857047     20x8 1/2 8x170mm 5" 5 1/8" Tapered 71-2857050     20x8 1/2 8x170mm 5 1/4" 5 1/8" Tapered 71-2857052     20x8 1/2 8x170mm 5 1/2" 5 1/8" Tapered 71-2857055     20x8 1/2 8x170mm 5 3/4" 5 1/8" Tapered 71-2857057     20x8 1/2 8x170mm 6" 5 1/8" Tapered 71-2857060

予告なく仕様変更する場合が有ります。 WHEELの特性上、RIM幅・BACKSPACE(OFFSET）は参考値(目安)とお考えください。 OFFROAD ONLY. オプション,仕様,多数有り。
