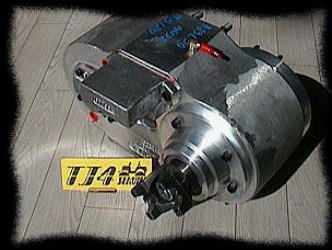

TJ4SERVICE ATLAS Transfer Case

Atlasと共に次のステージへ。

Atlas 2 Speed:

2.0 : 1

3.0 : 1

3.8 : 1

4.3 : 1

5.0 : 1

6.0 : 1

Atlas 4 Speed:
5.4 : 1	2.0:1, 2.72:1, 5.44:1.
10.3 : 1	2.72:1, 3.8:1, 10.3:1.

CASE:
Material: 356-T6 Heat Treated Aluminum
Weight: 110 lbs. (dry)

INTERNAL COMPONENTS:
Gears: Helical Cut
Bearings: Needle & Taper Rollers
Synchronizers: Borg Warner
Available Input Shaft Splines:
10, 21, 23, 25, 27, 28, 29, 31, 32, 34, 35

Tail Shaft H.D., 32 Spline,
Front Output 26 Spline or 32 Spline

RATIOS:
Low Range: 2.0:1 or 3.0:1 or 3.8:1 or 4.3:1
or 5.0:1 or 6.0:1

High Range 1:1

LUBRICATION:
Quarts:2.0
Liters:1.98

LENGTH COMPARISON:
*Atlas Short tail 11.8" NP 231, 20.5"
*Atlas Long tail 13.8" NP241 Rock Trac T/C, 15-1/4"
Dana 300, 12"

CASE:
Material: 356-T6 Heat Treated Aluminum
Weight: 125 lbs. (dry)

INTERNAL COMPONENTS:

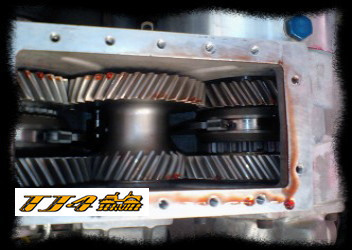

Gears: Helical Cut
Planetary Gears: 6 Gears Helical Cut
Bearings: Needle & Taper Rollers
Synchronizers: Borg Warner
Available Input Shaft Splines:
21, 23, 27, 29, 31, 32, 34

Tail Shaft H.D., 32 Spline,
Front Output 32 Spline

RATIOS:
Low Range: (2.0:1, 2.72:1, & 5.44:1)
or (2.72:1, 3.8:1, & 10.34:1)

High Range 1:1

LUBRICATION:
Quarts: 2.5
Liters: 2.36

LENGTH COMPARISON:
*Atlas Short tail 15" NP 231, 20.5"
*Atlas Long tail 17" NP241 Rock Trac T/C, 15-1/4"
Dana 300, 12"

製品の仕様は予告なく変更することがあります。
